1962-1976 DODGE & PLYMOUTH
WHEEL ACCESSORIES

WH-6776

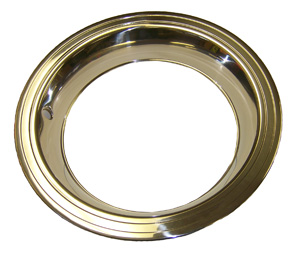

WHEEL TRIM RINGS

WH-6794	15" TRIM RING (Brushed Finish; Repro)	Sold Out
WH-6776	15" TRIM RING (Polished Finish; Repro)	$ 269.95/set of 4

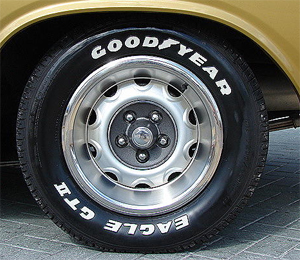

RALLYE WHEEL CENTER CAPS

WH-31	71 Rallye Center Cap (Large Bolt Pattern; Dark Argent Silver)	$ 84.95 ea.
WH-31LIGHT	70 Rallye Center Cap (Large Bolt Pattern; Light Argent Silver)	$ 89.95 ea.
WH-926	72-74 Rallye Center Cap - 72-74 B/E Body & 73-Up A Body - Large bolt pattern	$ 84.95 ea.
WH-431	Aluminum Insert for 70-71 style Rallye centers (excellent repro of the brushed aluminum insert for tip of cone; adhesive backed)	$ 9.50 ea.
MP-77R06143	71 Duster, Dart & Demon Rallye Wheel Center Caps (Small Bolt Pattern; Dark Argent Silver) SET OF 2	$ 399.95/set of 2
MP-77R06144	70 Duster, Dart & Demon Rallye Wheel Center Caps (Small Bolt Pattern; Light Argent Silver) SET OF 4	$ 399.95/set of 4
MP-77R06146	All 1971-78 Models - Standard Hub Cap Package (Aluminum Plain) SET OF 4	$ 254.95/set of 4

ROAD WHEEL CENTER CAPS
(for all size wheels)

WH-237	Road Wheel Center (Factory original)	$ 79.95 ea.
WH-300	Road Wheel Retainer (Factory original)	$ 36.95 ea.
WH-6781	Aluminum Insert for Road Wheel Centers (excellent repro of the aluminum and black insert for tip of cone; adhesive backed)	$ 7.95 ea.
WH-6781SET	SET OF 4 above Aluminum Inserts	$ 29.95/set

WHEEL LUG NUTS AND ATTACHING HARDWARE

WH-717	SELF TAPPING SCREWS (need 2 per center for Road wheels and 5 per center for Rallye wheels)	$ 95 ea.
WH-260*	CHROME LUG NUT - Right (1/2") (fits all except 72-down A Body)	$ 6.99 ea.
WH-261*	CHROME LUG NUT - Left (1/2") (fits all except 72-down A Body)	$ 6.99 ea.
WH-4285R	LUG NUT - (Standard) - Right (fits 1/2" wheel stud)	$ 3.75 ea.
WH-4285L	LUG NUT - (Standard) - Left (fits 1/2" wheel stud)	$ 3.75 ea.

* 70-Down models used 10 - Right and 10 - Left lug nuts; 71-Up models used 20 - Right lug nuts.

WHEEL STUDS


WS-610039	Right	WS-610083	Right	WS-610096	Right
1/2"-20 X 1-19/32" w/ .625 knurl dia. 70 Challenger & 70 Barracuda w/ 9" Frt Drum Brake		7/16"-20 X 1-1/4" w/ .570 knurl dia. 65-72 A Body w/ 9" Frt Drum Brake		7/16"-20 X 1-7/16" w/ .555 knurl dia. 68-70 A Body w/ 10" Frt Drum Brake
WS-610039	$10.50 ea.	WS-610083	$ 10.50 ea.	WS-610096	$ 10.50 ea.


WS-610099	Left	WS-610103	Right	WS-610122	Right
7/16"-20L X 1-3/8" w/ .472 knurl dia. 64-70 A Body Rear & 65-69 Barracuda Frt		1/2"-20 X 1-19/32" w/ .673 knurl dia. 73-80 A Body Rear, 63-74 B Body Rear & 70-74 E Body Rear		1/2"-20 X 1-9/16" w/ .650 knurl dia. 68-70 B Body w/ Budd Frt Drum Brake & 70 E Body w/ Budd Frt Drum Brake
WS-610099	DISC	WS-610103	$ 10.50 ea.	WS-610122	$ 10.95 ea.


WS-610130	Right	WS-610132	Right	WS-610134	Right
7/16"-20 X 2" w/ .565 knurl dia. 70-72 A Body w/ Frt Disc Brake		1/2"-20 X 1-5/8" w/ .650 knurl dia. 66-72 B Body & 70-72 E Body w/ 10'' and 11" Frt Drum Brake		1/2"-20 X 1-11/16" w/ .625 knurl dia. 72 B & E Body w/ 11" Kelsey Hayes Frt Drum Brake
WS-610130	DISC	WS-610132	$ 10.50 ea.	WS-610134	$ 10.50 ea.


WS-610149	Right	WS-610168	Right	WS-610169	Right
1/2"-20 X 1-15/16" w/ .622 knurl dia. 70-71 B & E Body w/ Frt Disc Brake		7/16"-20 X 1-19/32" w/ .572 knurl dia. 73-76 A Body w/ Frt Drum Brake, 74-75 A Body w/ Kelsey Hayes Frt Disc Brake & 74 B & E Body w/ Frt Drum Brake		1/2"-20 X 1-5/8" w/ .620 knurl dia. 73-76 A Body & 73-74 B & E Body w/ Motor Wheel Frt Disc Brake
WS-610149	$ 10.50 ea.	WS-610168	$ 10.50 ea.	WS-610169	$ 10.50 ea.
