1962-1976 DODGE & PLYMOUTH
 DETAILING PARTS
CLIPS & FASTENERS
Order Form Phone 603-898-0535



QUICK LINKS
Firewall Insulation Fasteners Door Panel Clips Grille Spacers, Fasteners & U Nuts
Wire Straps, Clips & Holders Door Handle Linkage Clips Air Grabber Clips
Pushnut Bolt Retainers Zinc Plated Nuts



ROAD LAMP WIRE HARNESS CLIPS
Clips to lower radiator support. Keeps wiring away from radiator.
KQ-RLC 1970-72 Cuda $ 22.95/set of 3



FIREWALL INSULATION FASTENERS

DI-775 Firewall Insulation fastener  Inside Firewall Insulation Fastener
All Year, Make & Model
(pushes through firewall from inside; holds interior firewall insulation pad to firewall; black plastic)
$ 4.00 ea.
DI-775R Firewall Insulation Fasteners  Inside Firewall Insulation Fastener
All Year, Make & Model
(pushes through firewall from inside; holds interior firewall insulation pad to firewall; black plastic; not original looking in appearance)
$ 1.75 ea.
DI-1120 Inner Fender Panel & Firewall Fastener  63-70 A & B Body $ 3.50 ea.

DOOR PANEL CLIPS

DI-783

70-74 E Body & Various other A & B Body $ 2.50 ea.
DI-783SET Set o    $ 23.00/set
DI-783B

Various A & B Body $ 1.75 ea.
DI-783BSET Set of 24   $ 29.95/set

HEATER CORE HOUSING CLIPS

DI-785 Heater Core Housing Hold Together Clips 67-74 A Body & 70-74 E Body (holds both halves together; 10 needed) $ 14.95 ea.

GRILLE U NUTS

DI-789 U Nuts 70 Cuda Grille $ 1.95 ea.

GRILLE SPACERS
Plastic spacers that go between the grille and the body of the car; prevents rattling.

MS-6131B

MS-6130B Black 68-70 Charger $ 34.95/kit
MS-6130W White 68-70 Charger $ 34.95/kit
MS-6131B Black (as original) 70 Cuda $ 44.95/kit

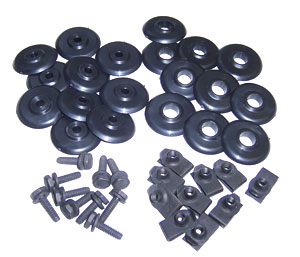

GRILLE SPACER KITS (include bolts & spacers)

MS-6131BKIT

MS-6130BKIT Black 68-70 Charger $ 64.95
MS-6130WKIT White 68-70 Charger $ 64.95
MS-6131BKIT Black 70 Cuda $ 69.95

GRILLE FASTENERS

DI-773 Top Grille fastener  Top Grille Fasteners
71 Chall, 71 Roadrunner & others
(round black plastic; holds top of grille in place)
$ 2.75 ea.
TOP GRILLE FASTENER KITS
DI-773BKIT Top Grille Fastener Kit
(8 piece kit; 4 round plastic upper clips, 4 lower grille fasteners & lower grille fastener screws)
70 Roadrunner, Belvedere, GTX & Coronet $ 34.95/kit
DI-773AKIT Top Grille Fastener Kit
(8 piece kit; 4 round plastic upper clips, 4 lower grille fasteners & lower grille fastener screws)
70-71 Valiant & Duster $ 34.95/kit

DOOR HANDLE LINKAGE CLIPS

DI-1065R   70-74 Cuda & Challenger - Right $ 8.95 ea.
DI-1065L   70-74 Cuda & Challenger - Left $ 8.95 ea.

AIR GRABBER CLIPS

MS-6754 Air Grabber Clips All models with Cold Air Induction Systems (clips that hold hoses from the engine to the vacuum canister under the hood only with  cold air induction systems)

$ 39.95/set

TOP DOOR & QTR MOLDING NUT

DI-1066 End of Top Door & Quarter Belt Molding NUT 70-71 E Body
$ 1.95 ea

WIRE STRAPS, CLIPS & HOLDERS

DI-304 Heater Hose Strap (Black plastic strap that pushes into right side of inner fender panel directly above shock tower. Holds heater & other hoses up and in place) 70-74 Cuda/Challenger & 71-Up B Body $ 5.75 ea.
DI-489 Wire Holder (next to battery; pushes into inner fender panel; holds wires against inner fender panel)  70-74 E Body, 71-Up B Body  $ 1.75 ea.
DI-490 Wire & Hose Routing Holder (large, round, black plastic; fits at various points on inner fender panels & firewall; opens to place wires & hoses in) 70-74 Cuda/Challenger & 71-Up B Body $ 6.50 ea.

DI-495 S Clip (holds vacuum hose on fuel lines) $ 8.95 ea.
DI-524 Holder (tapes to headlight wire harness; pushed into left inner fender panel; fits between holders DI-489 above)   $ 7.75 ea.
DI-6145 Wiring Harness Clip 70 E Body $ 7.95 ea.
DI-6145SET Set of 3 above

$ 19.95/set
PUSHNUT BOLT RETAINERS
Phosphate retainers that hold on the brake drum.
AV-9298 7/16" dia. X 27/32" o.d. $ 1.50 ea.
AV-9299 1/2" X 15/16" o.d.   $ 1.50 ea.
ZINC PLATED NUTS
  Thread Hex Head O.D.
AV-2554 6-32 5/16" 7/16" $ 1.25 ea.
AV-2555 8-32 11-32" 15/32" $ 1.25 ea.
AV-2556 10-32 3/8" 1/2" $ 1.25 ea.
AV-2557 10-24 3/8" 1/2" $ 1.25 ea.
AV-2558 10-24 3/8" 3/4" $ 1.25 ea.
AV-2560 12-24 3/8" 3/4 $ 1.25 ea.
AV-2561 1/4"-20 7/16" 19/32" $ 1.25 ea.
AV-2562 1/4"-20 7/16" 13/16" $ 1.25 ea.
AV-10764 5/16"-18 1/2" 13/16" $ 1.25 ea.
CP-774627

T Bolt
(snap in type)
1-1/2" long X 1/2" wide

$5.95 ea.
CP-693327

Grille Attaching Plastic Clip 70 RR/Sat/GTX & Various Others

$ 8.95 ea.
CP-723588

Grille Attaching Plastic Clip - 70-72 Duster & Various Others

$ 8.95 ea.
CP-723707

Grille to Frt. Bumper Clip

$ 1.50 ea.
CP-754137

Grille Nut

$ 3.95 ea.

CP-693272

Support Assy Deck Opening Upper Panel

$5.95 ea.
DI-RJL1012
1/4" & 5/16" Brake/Fuel Line Clip
$ 3.00 ea.
RS-CLP39

3/8" Frame Clip

$ 3.95 ea.

DI-RJL1013
1/4" & 3/8" Brake/Fuel Line Clip
$ 3.00 ea.
DI-RJL1012A
5/16" & 5/16" Brake/Fuel Line Clip
$ 3.00 ea.
CH-991

3-1/2" lg. nylon Wiring Strap

1.00 ea.

CH-992

5" lg. nylon Wiring Strap

1.00 ea.

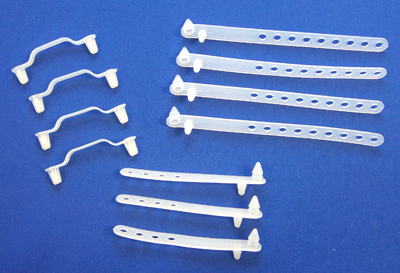

WIRING STRAP KITS
These wiring strap kits include the clips to hold your wiring, and mount at various points under your hood.

DI-2701 63-69 A BODY $ 24.99
DI-2472 70-74 A BODY $ 24.99
DI-2491 63-70 B BODY $ 24.99
DI-2546 71-72 B BODY $ 24.99
DI-3984 73-74 B BODY $ 24.99
DI-2546 70-74 E BODY $ 24.99



Routing Clip ROUTING CLIPS
A quick, economical method of fastening wires, tubes, hoses or rods from 1/4" to 1" in diameter to metal, plastic or any other surface ranging from 1/32" to 1/8" thickness. Clips are molded of durable black nylon plastic. They snap into 1/4" diameter and are held firmly in place by flexible "snubber tips" which compensate for variation in wall thickness.
  Hose/Wire
Out. Dia.
Clip Overall
Height
Clip Height
Above Panel

AV-14529 1/4" 27/32" 7/16" $ 3.95 ea.
AV-14530 3/8" 29/32" 15/32" $ 3.95 ea.
AV-14531 1/2" 1-1/16" 5/8" $ 3.95 ea.
AV-14532 5/8" 1-3/16" 3/4" $ 3.95 ea.
AV-14533 3/4" 1-5/16" 7/8" $ 3.95 ea.
AV-14534 1" 1-19/32" 1-5/32" $ 3.95 ea.
