MOPAR PERFORMANCE CRATE ENGINES
Order Form Phone 603-898-0535
Jims Auto Parts Home Page



P5007630AE

(Cross Ram Set-up Not Included)

 528 Hemi Crate Engine - 640 Horsepower

Bigger is truly better in high-performance engines. Mopar has developed a huge 528 Hemi Crate Engine that cranks out a whopping 640 horsepower and 612 ft.-lbs. of torque! Mopar recommends that for maximum performance, an 850/900 cfm Holley carburetor and 2-1/4" exhaust headers be used (not available through Mopar). Shown with available Cross Ram Intake (P5007534), Holley Carburetors (P4452778 and P4452779), and Hemi Air Horns (P5007809). Refer to the Hemi and Fuel Systems sections of this catalog for details. Note: Assembled by legendary Hemi engine builder Ray Barton for Mopar.

P5007630AE Crate Engine, 640 Horsepower, 612 ft.-lbs. Torque,
528 Hemi Specifications:

 Built with All-New Components
Heavy-Duty, Siamese-Bore Cast Iron Block with Cross-Bolted Mains
Aluminum Cylinder Heads
Black Cast Aluminum Valve Covers
Breathers
Stainless Steel 2.25" Intake and 1.94" Exhaust Valves
Heavy-Duty Single Valve Springs
Premium Material Valve Stem Seals
Camshaft grind selected by Ray Barton for Mopar's 528 Hemi
Forged Pistons - 4.50" Bore, 10.0:1 C.R.
Aluminum Single Plane Four-barrel Intake Manifold
Forged Steel Crankshaft - 4.15" Stroke
Precision Double Roller Timing Chain and Sprockets
Chrome Front Cover
Six-quart Center Sump Oil Pan (1970-71 B- and E-Body Style)
Spark Plug Wires
High-Performance Electronic Distributor
Heavy-Duty Engine Stand and Shipping Crate
Note: 10.0:1 compression ratio with aluminum heads allows the use of current high-octane premium pump gasoline. Crate engines that change the emissions performance of the vehicle may not be legal for use on vehicles regulated for highway use in California and other states. Horsepower and torque ratings based on test engine. Ratings may vary on individual engines. Verify hood clearance for Intake Manifold.

P5007630AE

528 Hemi Crate Engine

$ 17,799.95
In Stock!

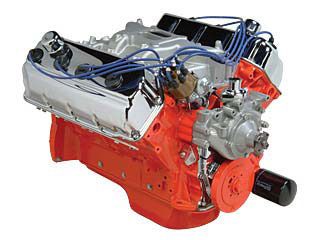

P5249666AE

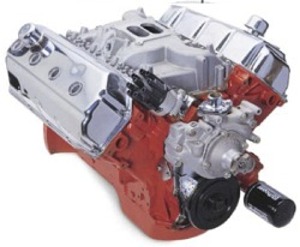

472 Hemi Crate Engine
530 Horsepower

The 472 Hemi Crate Engine with increased displacement and power is an impressive step up from the familiar 426 Hemi. Mopar recommends the use of an 850 cfm vacuum secondary Holley carburetor and 2.00" exhaust headers (not available through Mopar).

P5249666AE Crate Engine, 530 Horsepower, 530 ft.-lbs. Torque,
472 Hemi Specifications:

 Built with All-New Components
Heavy-Duty Cast Iron Block with Cross-Bolted Mains
Cast Iron Cylinder Heads
Chrome Valve Covers
Breathers
Stainless Steel 2.25" Intake Valves and 1.94" Exhaust Valves
Heavy-Duty Single Valve Springs with Dampers
Premium Material Valve Stem Seals
301ฐ Hydraulic Camshaft (248ฐ duration @ .050") - 0.582"/0.563" Lift
Forged Pistons - 4.250" Bore, 9.0:1 C.R.
Aluminum Dual-Plane M1ฎ Four-barrel Intake Manifold
Forged Steel Crankshaft - 4.150" Stroke
Premium Double Roller Timing Chain and Sprockets
Front Timing Chain Cover
Six-Quart Rear Sump Oil Pan (1970-71 B- and E-Body Style)
7 mm Silicone Spark Plug Wires
Spark Plugs
High-Performance Electronic Distributor
Heavy-Duty Engine Stand and Shipping Crate
Note: 9.0:1 compression ratio allows the use of current high-octane premium pump gasoline. Crate engines that change the emissions performance of the vehicle may not be legal for use on vehicles regulated for highway use in California and other states. Horsepower and torque ratings based on test engine. Ratings may vary on individual engines.

P5249666AE

 472 Hemi Crate Engine

$ 15,299.95

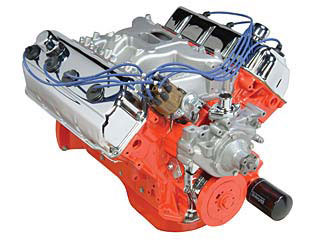

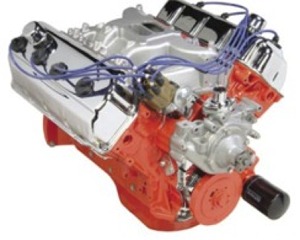

 P5249667AE

426 Hemi Crate Engine
465 Horsepower

Remove and store your rare numbers-matching original Hemi and replace it with a Mopar 426 Hemi Crate Engine. Here's classic power to move you -- 465 horsepower and 465 ft.-lbs. of torque under your right foot. For maximum performance, Mopar recommends the use of a 750 cfm Holley carburetor (P4349228) and 2.00" exhaust headers (not available through Mopar).

 P5249667AE Crate Engine, 465 Horsepower, 465 ft.-lbs. Torque, 426 Hemi Specifications:

 Built with All-New Components
Heavy-Duty Cast Iron Block with Cross-Bolted Mains
Cast Iron Cylinder Heads
Chrome Valve Covers
Breathers
Stainless Steel 2.25" Intake Valves and 1.94" Exhaust Valves
Heavy-Duty Single Valve Springs with Dampers
Premium Material Umbrella-Type Valve Stem Seals
288ฐ Hydraulic Camshaft (234ฐ duration @ .050")- 0.499"/0.483" Lift
Forged Pistons - 4.250" Bore, 8.7:1 C.R.
Aluminum Dual-Plane Four-barrel Intake Manifold
Forged Steel Crankshaft - 3.750" Stroke
Premium Double Roller Timing Chain and Sprockets
Front Timing Chain Cover
Six-Quart Center Sump Oil Pan (1970-71 B- and E-Body Style)
Spark Plug Wires
High-Performance Electronic Distributor
Note: 8.7:1 compression ratio allows the use of current high-octane premium pump gasoline. Crate engines that change the emissions performance of the vehicle may not be legal for use on vehicles regulated for highway use in California and other states. Horsepower and torque ratings based on test engine. Ratings may vary on individual engines.

P5249667AE

 426 Hemi Crate Engine

$ 14,699.95
 In Stock!

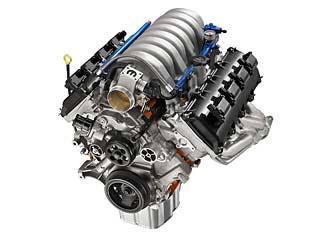

 P5155067



6.1L Hemi Crate Engine 425 Horsepower

 P5155067 Crate Engine, 6.1L Hemi, EFI, 425 Horsepower, 420 ft.-lbs. Torque. Includes billet fuel rail with integral pressure regulator (P5153783), cable operated 80mm throttle body (P5153689), and programmable EMS kit (P5153921). Dyno tested, ready to run.

P5155067

 6.1L Hemi Crate Engine

$ 9,299.95
 In Stock!




540 Hemi Crate Engine
650-900+ Horsepower

 The Mopar 540 Aluminum Hemiฎ Crate Engine is built for extreme Hot Rods and Pro Street cars. This is for the person who wants the horsepower and durability of a race engine and the drivability of a street engine. Available in carbureted or supercharged EFI versions, it can produce up to 900+ horsepower, depending on induction. This Hemi is a fully water-jacketed motor with a streetable camshaft, and it’s made with an all aluminum block that’s stronger and lighter than cast iron. The 540 Hemi will also be available in a completely polished version for the extreme show car enthusiast.

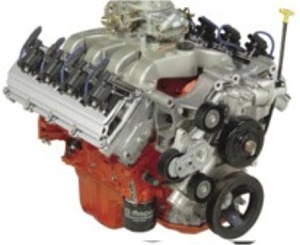

P5153312

540 Aluminum Hemi Crate Engine

Carbureted

$ 24,799.95

P5153313

540 Aluminum Hemi Crate Engine

Carbureted, Polished

$ 27,399.95

P5153314

540 Aluminum Hemi Crate Engine

Supercharged

$ 32,099.95

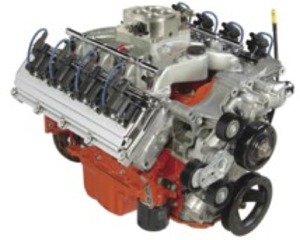

P5153315

540 Aluminum Hemi Crate Engine

Supercharged, Polished

$ 35,599.95

Specifications:
• Built with all-new components
• Aluminum Block with Steel Sleeves and Cross Bolted Mains (4.500" Bore)
• Aluminum Cylinder Heads
• Forged 4340 Nitrided Steel Crankshaft (4.250" Stroke)
• 4340 H-Beam Performance Connecting Rods
• Lightweight Forged Racing Pistons (10.75:1 Compression)
• Hydraulic Performance Roller Camshaft, degreed for max horsepower
• Hydraulic Performance Roller Lifters
• Complete Racing Gear Drive
• Aluminum Gear Drive Front Cover
• Roller Tip Racing Intake and Exhaust Rocker Arms
• Billet Aluminum Rocker Stands
• Hardened Performance Rocker Shafts
• Billet Aluminum High-Volume and Pressure Oil Pump
• Aluminum Oil Pan
• Stainless Steel Racing 2.25" Intake and 1.94" Exhaust Valves
• Aluminum Dual 4 Intake Manifold
• SFI-Approved Racing Vibration Damper
• Chrome Moly Pushrods
• High-Performance Roller Double Valve Springs

• Steel-Performance Spring Retainers
• Hardened Valve Spring Keepers
• 1/2" Head Stud Kit
• 9/16" Main Stud Kit
• 1/2" Side Bolts on Mains
• Heavy-Duty Performance Engine Bearings
• Performance Gaskets
• Moly Performance Rings
• 1" Diameter Oil Pump Feed Line
• Raised Cam for more Rod clearance
• Precision Balanced Engine Assembly
• Aluminum Valve Covers
• Electronic Distributor
• Spark Plug Wires
• Aluminum Water Pump and Housing

Supercharged:
• Complete 871 Supercharger
• Complete Blower Belt Drive Kit
• Blower Intake Manifold
• Billet Electric Water Pump

Note: Crate engines that change the emissions performance of the vehicle may not be legal for use on vehicles regulated for highway use in California and other states. Horsepower and torque rating based on test engine. Ratings may vary on individual engines.

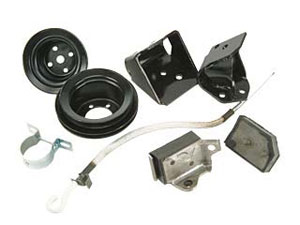

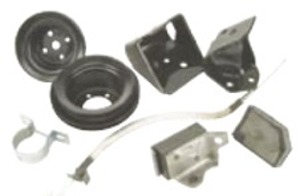

Hemi Crate Engine Installation Components

Now Mopar Performance offers these much needed parts to make your 426-based original production or crate Hemi Engine installation easier. Each part sold individually.

P4510281

Crank Pulley (w/ power steering)

$ 259.95

P4510286

Crank Pulley (w/o power steering)

$ 169.95

P4510283

Crank Pulley Spacer

$ 74.95

P4510282

Water Pump Pulley

$ 174.95

P4510284

Oil Dipstick & Tube

$ 87.95

P4510285

Coil Bracket

$ 23.95

P4510287

Engine Mount Bracket

$ 284.95

P4510288

Engine Mount Insulator - Left

$ 139.95

P4510289

Engine Mount Insulator - Right

$ 39.95

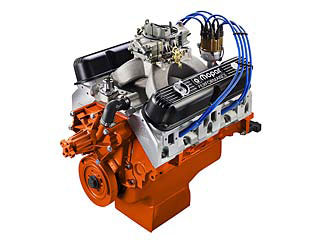

P5153523
Shown with carburetor, not included

440 Super Commando Crate Engine
530 Horsepower

Big block power and cubic inches in a small block package! Mopar's 440 Super Commando small block stroker crate engine gives you over 500 horsepower on pump gas, and offers the compact size of a small block.

 P5153523 Crate Engine, 530 Horsepower, 540 ft-lbs. Torque, 440 Super Commando Specifications:

 Bore: 4.185"
Stroke: 4.000"
Compression Ratio: 10:1
Block: 340 Siamese Block with Four-bolt Mains
Cylinder Heads: Aluminum
Intake Manifold: Single Plane Four-barrel
Camshaft: Hydraulic, 251ฐ/257ฐ Duration @ .050", .603" Lift
Oil Pan: Eight-quart Center Sump Street/Strip Oil Pan
Crankshaft: Forged 4340
Pistons: Forged
Valves: 2.055"/1.600" Stainless
Connecting Rods: Forged 6.123"
Rocker Arm: Aluminum Roller with 1.6:1 Ratio
P5153523 440 Super Commando Crate Engine $ 12,499.95




 P5153527
Shown with carburetors, not included

410 Six Pack Crate Engine 470 Horsepower

Nothing shrinks time and distance like cubic inches and a good induction system. Mopar's new 410 Stroker Small-Block has all the goods for whatever your application is. Basic ingredients include a new 340 block featuring 4-bolt mains, aluminum "LA" heads, high-lift hydraulic camshaft and a 4.00" Stroker heavy-duty forged crankshaft. Topped off with a sexy aluminum "Six Pack" intake manifold and Mopar cast aluminum valve covers. The 410 has the right stuff to impress the troops at the drag strip and on cruise nights.

 P5153527 Crate Engine, 470 Horsepower, 490 ft.-lbs. Torque, 410 Six Pack Specifications:

 Bore: 4.040"
Stroke: 4.000"
Compression Ratio: 10:1
Block: New 340 Replacement Block with Four-bolt Mains
Cylinder Heads: Aluminum "LA" Heads
Intake Manifold: Aluminum "Six Pack"
Camshaft: Hydraulic, 292ฐ/292ฐ Duration; .508" Lift
Oil Pan: Eight-quart Center Sump Street/Strip Oil Pan

Note: Shown with available carburetors.
P4349237 Center
P4349238 Outboard
P5153527 410 Six Pack Crate Engine $ 11,599.95

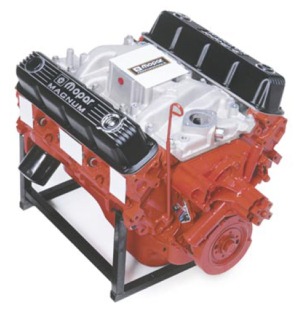

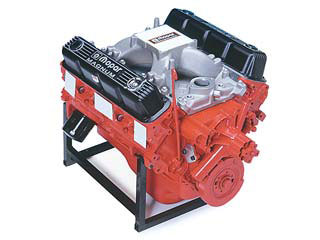

P5155074

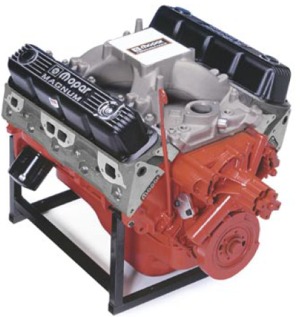

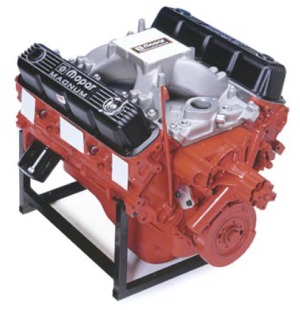

360 Magnum Crate Engine
390 Horsepower

Mopar offers a high output Magnum 360, now standard with new Aluminum aMgnum cylinder heads. Mopar testing produced 390 horsepower at 5,300 rpm, with peak torque output of 420 ft.-lbs. at 4,400 rpm. Mopar recommends the use of a 750 cfm Holley carburetor (P4349228) and 1-7/8" exhaust headers (not available through Mopar).

P5155074 Crate Engine, 360 Magnum, 390 Horsepower, 420 ft.- lbs. Torque Specifications:

New HP Magnum Block
New Aluminum Magnum Cylinder Heads
Mopar Cast Aluminum Valve Covers
High-Strength Stainless Steel Valves - 2.02" Intake, 1.60" Exhaust
Heavy-Duty Valve Springs
Hydraulic Roller Camshaft - 288ฐ/292ฐ Advertised Duration
Pistons - 10:1 C.R.
Single Plane, M1ฎ 4-bbl Aluminum Intake Manifold
(Includes Bosses for MPI Conversion; Taller than Stock - Check Hood
Clearance)
Center Sump Oil Pan Similar to Commando Engine
(Fits Passenger Cars; Pan Swap Required for Truck Use)
Mopar Performance Electronic Ignition Kit with Distributor
Heavy-Duty Engine Stand and Engine Crate
Does Not Include Accessory Brackets
Not for Use with Air Conditioning
Not Recommended for Factory MPI Replacement
Flex Plate P4876706 and a Symmetrical, Neutrally Balanced
Torque Converter or Flywheel P5249842 Are Recommended (Not
Included)
P5155074 360 Magnum Crate Engine $ 9,795.95

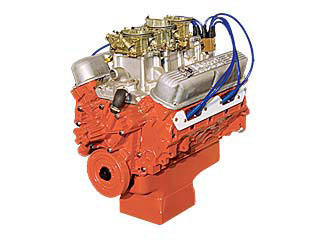

P5153526

340 Six-Pack Crate Engine  330 Horsepower

The new 340 crate engine is built with all new parts, including a 340 block with four-bolt mains, Aluminum "LA" cylinder heads, HD cast crankshaft, six-pack intake, ignition system, water pump and stock-style front sump oil pan that will fit in most muscle cars.

P5153526 Crate Engine, 340 Six-pack, 330 Horsepower, 330 ft lbs Torque Specifications:

Bore: 4.040"
Stroke: 3.310"
Compression Ratio: 10:1
Block: New 340 Replacement Block with Four-bolt Mains
Cylinder Heads: Aluminum "LA"
Intake Manifold: Aluminum Six Pack
Camshaft: Hydraulic (292ฐ/292ฐ Duration, 0.508" Lift)
Oil Pan: Stock Style Center Sump - Fits Most Muscle Cars

Note: Shown with Available Carburetors - P4349241 Center, P4349239 Outboard (not included).
P5153526 340 Six Pack Crate Engine $ 10,799.95




 * Prices on these engines are cash prices; sorry no credit cards accepted for these purchases.  All engines shipped by common carrier.
