CLUTCH PARTS

CLUTCH PARTS

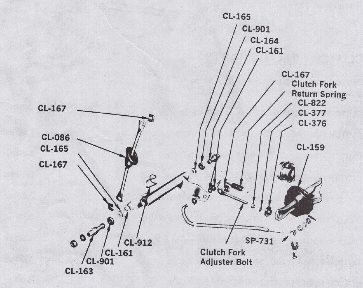

CLUTCH PEDAL LINKAGE REPAIR KITS

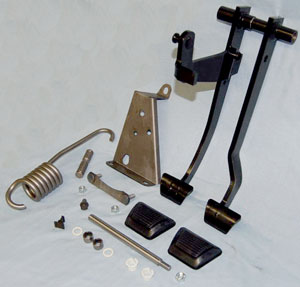

Clutch Pedal Repair Kit

Kit includes:
Clutch Rod Rubber Grommet (1) (CL-086)	Z Bar Equalizer Bar Ball (Frame) (1) (CL-163)	Z Bar Equalizer Bar Ball (Bellhousing) (1) (CL-164)
Z Bar Shaft Ball Seal (2) (CL-901)	Z Bar Equalizer Bar Bushings (2 sets) (CL-165)	Z Bar Bushing Retainer Clip (1) (CL-912)
Clutch Rod Holder Clips (3) (CL-167)	Nylon Washer (3) (CL-161)	Clutch Fork Adjuster Bolt Rubber Washer (1) (CL-376)
Clutch Fork Adjuster Bolt Steel Washer (1) (CL-377)	Clutch Adjuster Bolt Self Locking Nut (1) (CL-822)	Clutch Fork Return Spring (1)
Clutch Fork Adjuster Bolt (1)

CB-1129	66-74 ALL A BODY	$ 119.95/kit
CB-1130A	68-76 ALL B BODY & 70-74 ALL E BODY	$ 119.95/kit
CB-1130B	66-67 B BODY	$ 119.95/kit
HF-447KIT	62-65 B BODY (Big Block)	$ 129.95/kit

Z BAR SERVICE KITS

Kit includes:
Frame Mounted Z Bar Ball Stud (1) (CL-163)	Bellhousing Mounted Z Bar Ball Stud (1) (CL-164)	Nylon Equalizer Bar Bushings (4) (CL-165)
Z Bar Shaft Ball Seals (2)	Z Bar Bushing Retainer Snap Clip (1) (CL-912)	Clutch Rod Holder Clips (2) (CL-167)
Nylon Washers (2) (CL-161)	Special Large Washer & Nut for Frame Bar Ball

CL-1129SK	66-76 ALL A BODY	$ 69.95/kit
CL-1130SK	66-76 ALL B BODY & 70-74 ALL E BODY	$ 87.95/kit
HF-447SK	62-65 B Body (Big Block)	$ 99.95/kit

*CLUTCH LINKAGE PARTS*
	CL-086	CLUTCH ROD GROMMET (located in firewall; clutch rod goes through this)	All Make & Model	$ 8.99 ea.
	DI-1123	FIREWALL OVAL PLUG for cars w/ auto trans (located on left side firewall)	All Year, Make & Model	$ 8.95 ea.
	CL-167	CLUTCH ROD HOLDER CLIPS (3 per car needed)	All Make & Model	$ 3.95 ea.
3 & 4 SPEED SHIFTER BUSHING & CLIP KITS (Includes 6 shift rod clips & 6 shift rod bushings)
	SP-758NKIT	Above with nylon bushings	All Make & Model	$ 17.95/kit
	SP-758SKIT	Above with steel bushings	All Make & Model	$ 17.95/kit

	FW-SLG	SHIFTER LINKAGE PLATE FOAM SEAL (for floor mounted automatic shifters	All Make & Model	$ 5.50 ea.
CL-166A pictured	CL-452	Clutch Fork Adjuster BOLT	66-74 A Body (Small & Big Block)	$ 19.95 ea.
	CL-166A	Clutch Fork Adjuster BOLT	68-74 B & 70-74 E Body (Small & Big Block)	$ 39.95 ea.
	CL-166B	Clutch Fork Adjuster BOLT	66-67 B Body (Small & Big Block)	$ 34.95 ea.
	CL-376	Clutch Fork Adjuster Bolt ROUND RUBBER WASHER	All Make & Model	$ 5.50 ea.
	CL-377	Clutch Fork Adjuster Bolt STEEL ROUND CUPPED WASHER	All Make & Model	$ 5.00 ea.
	CL-822	Clutch Adjusting Bolt SELF LOCKING NUT	All Make & Model	$ 2.50 ea.
	CL-221	Clutch Fork RETURN SPRING	All Make & Models w/ Big Blocks	$ 8.50 ea.
	CL-222	Clutch Fork RETURN SPRING	All Make & Models w/ Small Blocks	$ 8.50 ea.
	CL-159	BELLHOUSING FORK BOOT	All Make & Model	$ 18.95 ea.
	CL-169	FRAME BRACKET for equalizer bar ball (this is the bracket that CL-163 mounts to)	All 64-76 B & E Body	$ 39.00 ea.
	CL-FB676	FRAME BRACKET for equalizer bar ball (this is the bracket that CL-163 mounts to)	All 67-76 A Body	$ 79.95 ea.
	CL-163	Z Bar EQUALIZER BAR BALL (Frame side)	All Make & Model	$ 19.95 ea.
	CL-164	Z Bar EQUALIZER BAR BALL (Bellhousing side)	All B & E Body	$ 19.95 ea.
	HF-BS3BH	Z Bar EQUALIZER BAR BALL (Bellhousing side)	All A Body	$ 29.95 ea.
	CL-165	Z Bar Equalizer Bar BUSHING (2 prs required per car)	All Make & Model	$ 7.95/pr.
	CL-901	Clutch Torque Shaft Z BAR SHAFT BALL SEALS (2 per car needed; holds grease in torque shaft)	All Make & Model	$ 6.95 ea.
	CL-912	Clutch Equalizer Z Bar Bushing RETAINER CLIP (clips on torque shaft; keeps bar from sliding on the studs)	All Make & Model	$ 6.95 ea.
	CL-161	Equalizer Z Bar ROUND PLASTIC WASHER (3 per car needed)	All Make & Model	$ 2.75 ea.

CLUTCH PEDAL TO Z BAR CLUTCH ROD
This clutch rod goes from the clutch pedal thru the firewall to the Z bar. This clutch rod goes through rubber grommet (#CL-086) as pictured above.

CL-6670B

CL-6776A	67-76 All A Body	$ 99.95 ea.
CL-625B	62-65 All B Body	$ 99.95 ea.
CL-6670B	66-70 All B Body	$ 99.95 ea.
CL-714B	71-74 All B Body	$ 119.95 ea.
CL-704E	70-74 All E Body	$ 99.95 ea.

TORQUE SHAFT/Z BARS

These z bars feature shouldered and hardened pins, a reamed inside diameter and plating.

FW-TS1	67-69 A Body	Big Block	$ 95.00 ea.
FW-TS2	68-69 A Body	340	$ 104.00 ea.
FW-TS2	70-74 A Body	All V8	$ 104.00 ea.
FW-TS4	63-65 B Body	All V8	$ 109.00 ea.
FW-TS5	66-69 B Body	All V8	$ 104.00 ea.
FW-TS6	70 B Body	All V8	$ 104.00 ea.
	70-74 E Body	Small Block
	71-74 B Body	Small Block
FW-TS8	70-71 E Body	Big Block & Hemi	$ 104.00 ea.
FW-TS8	71-72 B Body	Big Block (71-72) & Hemi (71)	$ 104.00 ea.
FW-TS9	73-74 B Body	Big Block	$ 139.95 ea.

BELLHOUSING BRACKETS
WITH BALL

FW-TSB1	67-68 A Body	Big Block	$ 84.95 ea.
FW-TSB2	69 A Body	Big Block	$ 89.95 ea.
FW-TSB5	63-64 B Body	Big Block	$ 49.95 ea.
FW-TSB6	65 B Body	All V8	$ 49.95 ea.
FW-TSB3	BIG BLOCK SPACER (use this spacer with FW-TSB1 & FW-TSB2)		$ 24.95 ea.

STANDARD CLUTCH & BRAKE PEDAL PADS


	CB-196	62-66 A Body & 62-65 B Body (w/ small raised dots)	8.50 ea.
	CB-1047PR	67-70 A Body & 66-70 B Body	12.95/pr.
	CB-055	70-72 E Body & 71-72 B Body	11.00 ea.
	CB-373	73-Up A, B & E Body	6.50 ea.
STANDARD CLUTCH & BRAKE PEDAL PAD BEZELS
	KQ-PB2	67-70 A Body & 66-70 B Body - Pair	27.95 pr.
	FW-898	70-72 E Body & 71-72 B Body	17.00 ea.
AUTOMATIC BRAKE PEDAL PADS
	CB-195	62-66 A Body & 62-65 B Body (w/ small raised dots)	13.50 ea.
	CB-1265	67-70 A Body & 66-70 B Body	13.50 ea.
	CB-1355	70-72 E Body 71-72 B Body	14.95 ea.
	CB-292	73-Up B & E Body	7.50 ea.
AUTOMATIC BRAKE PEDAL PAD BEZELS
	FW-709	66-70 A & B Body	16.00 ea.
	FW-900	70-72 E Body & 71-72 B Body	15.00 ea.
EMERGENCY BRAKE PEDAL PADS
	CB-197	62-66 A Body & 62-65 B Body (w/ small raised dots)	6.50 ea.
	CB-1932	66-70 B Body	11.50 ea.
	CB-1362	70-72 E Body & 71-72 B Body	11.50 ea.
	CB-1101	73-Up A, B & E Body	19.95 ea.
EMERGENCY BRAKE PEDAL PAD BEZELS
	FW-513	66-70 B Body & 73-74 B & E Body	12.00 ea.
	FW-938	70-72 E Body & 71-72 B Body	12.00 ea.
ACCELERATOR PEDALS
	CB-AP25D	65 Coronet, 62-64 Dart, 62-65 Belvedere & 62-64 Fury (w/ small raised dots; includes mounting nuts)	49.95 ea.
	CB-1351	66-70 B Body (correct reproduction; has correct rubber coated pattern with steel insert; includes mounting nuts)	49.95
	CB-4464	70 E Body	54.95
	CB-4464B	70 E Body with Bezel (same as above except includes bezel)	56.00
	CB-1353	71-74 A, B, C & E Body with Stainless Bezel	79.95
	KQ-GP2	71-74 A, B, C & E Body w/o Stainless Bezel	54.95
	KQ-GP1	1967-68 A Body	$ 54.95
	KQ-GP6	1969-70 A Body & Some C Body	$ 54.95
ACCELERATOR PEDAL BEZELS
	FW-703B	66-70 B Body	15.00 ea.
	FW-528B	70 E Body	15.00 ea.
	KQ-GP9	1971-74 A, B, C & E Body	$ 28.95
	KQ-GP10	1967-70 A Body	$ 24.95
*ACCELERATOR PEDAL HARDWARE KIT*
	KQ-GP4	1967-68 A Body	$ 19.95
	KQ-GP5	1969-70 A Body, 70 E Body & 1971-72 A, B, C & E Body	$ 19.95
	KQ-GP8	1973 E Body	$ 19.95

ACCELERATOR PEDAL ROLLER

This exact repro is made with the steel insert as originals.

KQ-GPR

1966-1970 B Bodies

$ 19.95 ea.

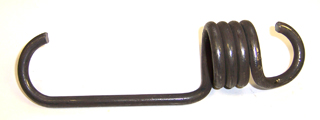

Under Dash Standard Clutch Pedal LARGE RETURN SPRING
Pulls clutch pedal up. One end of the spring goes to the clutch pedal itself and the other end of the spring goes to the clutch retention pin below.

CB-OCS922	70-74 E Body	$ 89.95 ea.
CB-OCS922B	71-74 B Body	$ 89.95 ea.
CB-OCS936	66-70 B Body	$ 89.95 ea.
CB-OCS727	62-65 B Body	$ 89.95 ea.
CB-OCS472	63-74 A Body (with standard non-heavy duty pedal assy)	$ 89.95 ea.
CB-OCS468	63-74 A Body (with heavy duty pedal assy; mostly used on 340 & 383 cars)	$ 89.95 ea.
Large Return Spring RETENTION PIN For use with above clutch pedal return springs.
CB-OCP236	66-70 B Body	$ 49.95 ea.
CB-OCP467	67-74 A Body	$ 49.95 ea.
CB-OCP918	70 E Body	$ 49.95 ea.
CB-OCP535	71-74 E Body	$ 49.95 ea.
CB-OCP535B	71-74 B Body	$ 49.95 ea.
*Large Return Spring Retention Pin HOOK*
CB-OCH777	63-74 A Body (replaces Chrysler # 2266777)	$ 45.00 ea.

CLUTCH PEDAL & EMERGENCY BRAKE PEDAL RETURN RUBBER BUMPER

DI-792

All Make & Model (pushes into bracket under dash)

$ 3.50 ea.

BRAKE & CUTCH PEDAL HINGE SHAFT BUSHING

CB-1064

66-Up; Plastic

$ 3.00 ea.

Clutch Pedal Assy SUPPORT BRACKETS with studs This is the bracket that helps support the clutch pedal assy to the firewall.		CB-CPSBE
CB-CPSBB	66-70 All B Body		$ 99.95 ea.
CB-CPSBE	70-74 E Body		$ 99.95 ea.
CB-CPSBEB	71-74 B Body		$ 99.95 ea.

DI-494	Gas Pedal Mount to floorboard FOAM SEAL	66-70 B Body	4.95 ea.
DI-370	Gas Pedal Mount to floorboard FOAM SEAL	70-74 Cuda/Challenger & 71-74 B Body	4.50 ea.
FW-ACG	Accelerator Cable Bracket to Firewall/Floor FOAM GASKET	All 66-70 B Body	7.95 ea.
FW-APA	Accelerator Pedal Bracket to Firewall FOAM SEAL	All A Bodies	5.50 ea.
